TDMI "EL" Series - REAR - Big Brake Kit (VB 2022+ WRX)

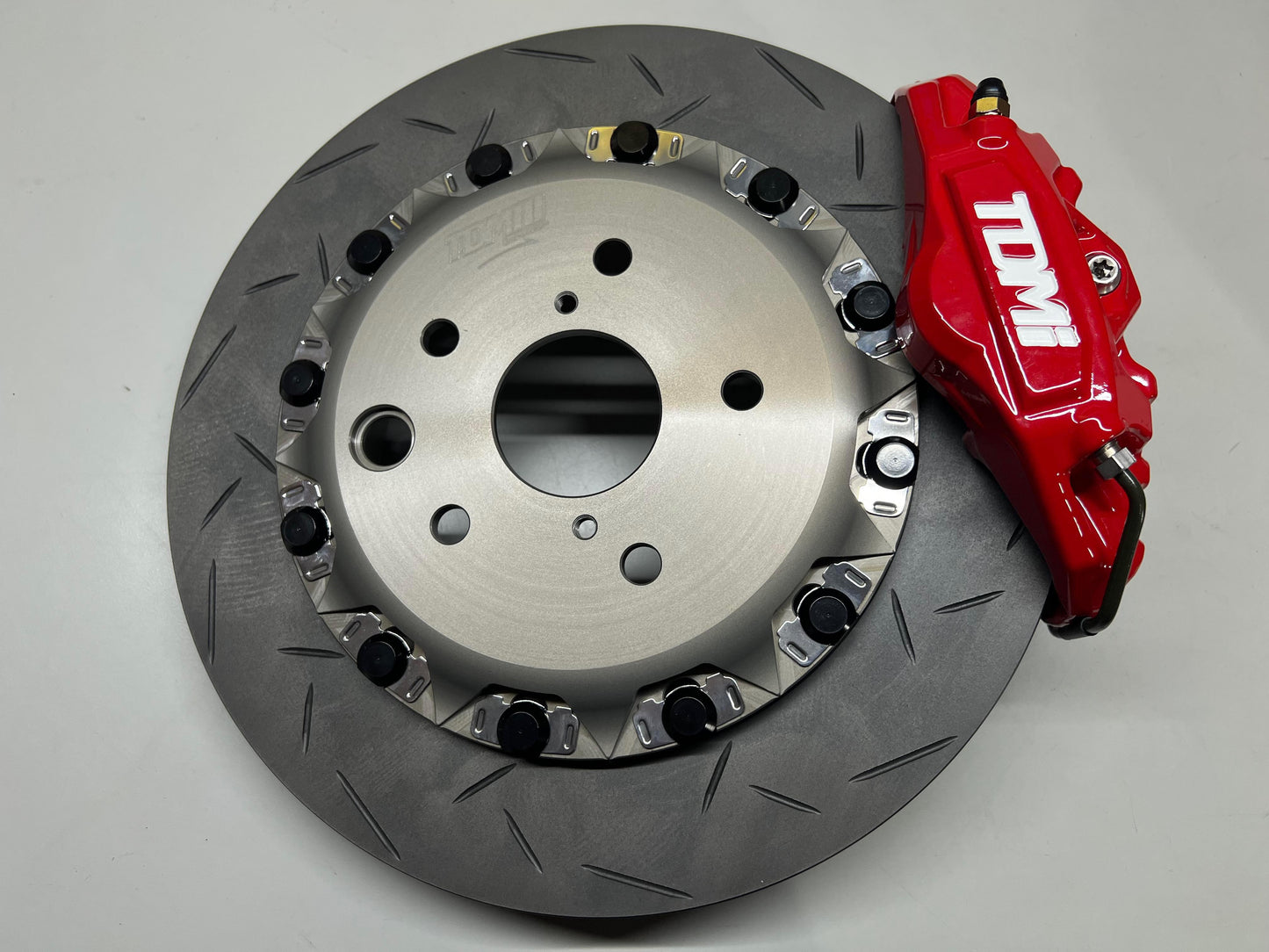

TDMimports EL Series 2 Piston Big Brake Kit – Custom Colors Available!

Upon ordering a custom color set, we will contact you via the email used in your order to coordinate your color choice!

Premium Big Brake Kit for High-Performance Street & Limited Track Use

The TDMimports EL Series 2 Piston Big Brake Kit is expertly engineered for high-performance applications, perfect for both spirited street driving and track days. Designed for non-CVT WRX models, this kit bolts directly onto stock spindles using our modular bracket system for a precise, hassle-free fit.

Superior Caliper Construction

Cast Monoblock Calipers: Made from lightweight, rigid cast aluminum to reduce unsprung weight and maximize strength with our monoblock design

Engineered for reliability and exceptional braking performance

Advanced Rotor Technology

Crafted from high-grade FC-25 cast carbon steel, these rotors withstand temperatures up to 900°C without significant expansion or warping

Minimal thermal expansion (~0.45 mm), compared to common FC-20 and FC-22 rotors which can expand 1.2–1.5 mm at just 500°C

Rotor hats forged from 7075-T6 alloy, hard anodized in a sleek champagne color for durability and style

What’s Included?

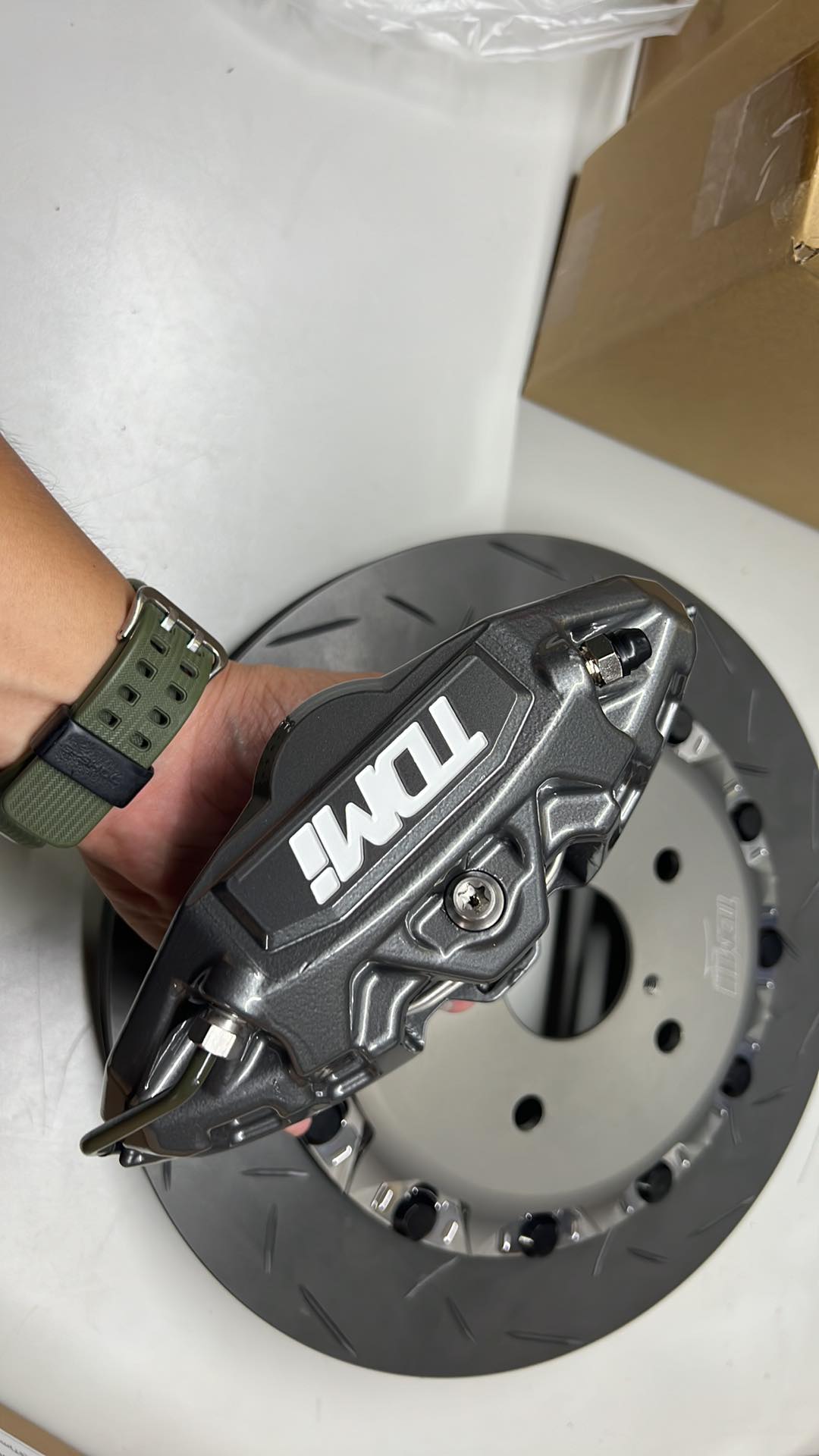

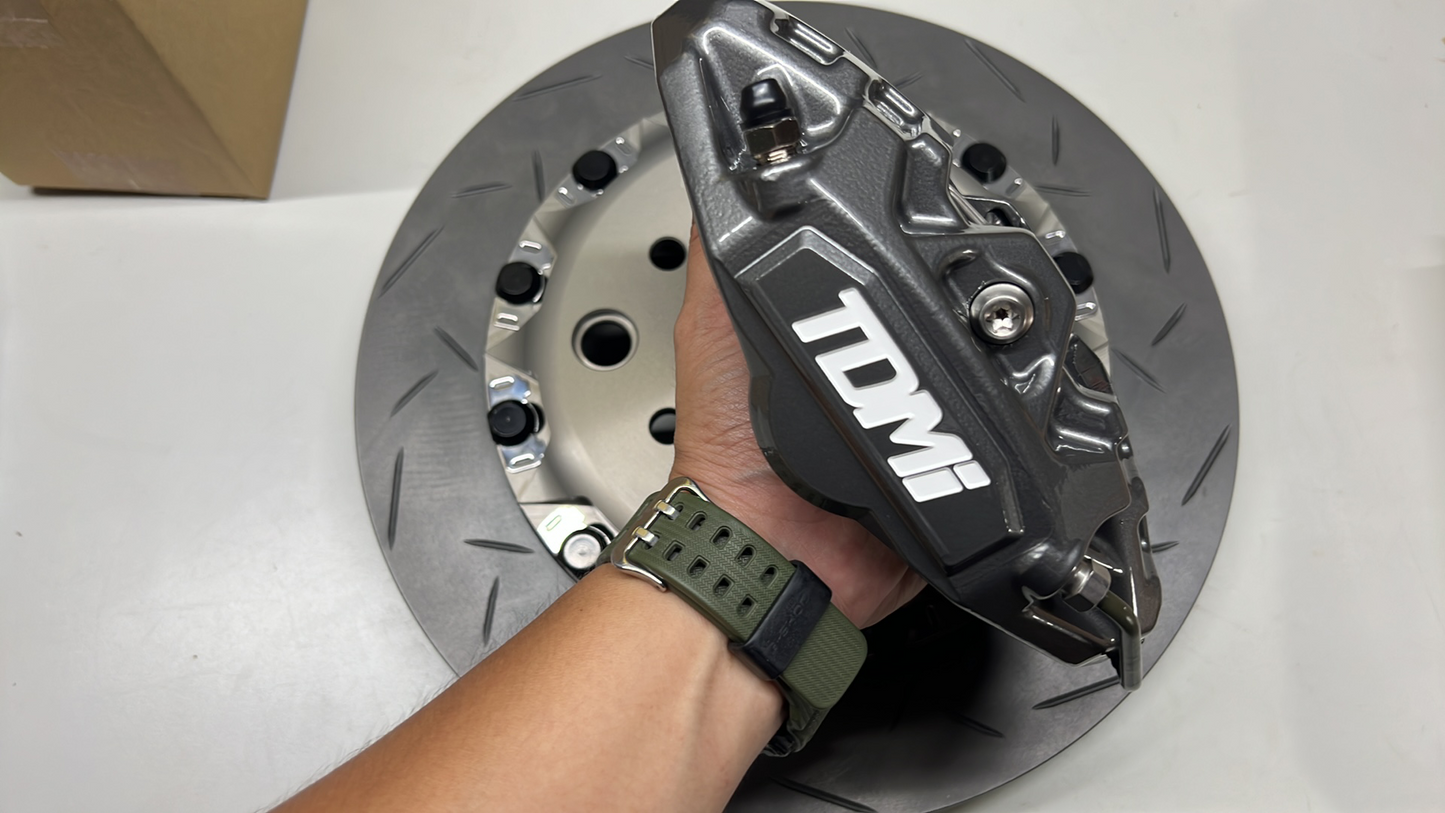

Pair of cast monoblock 2-piston caliper bodies

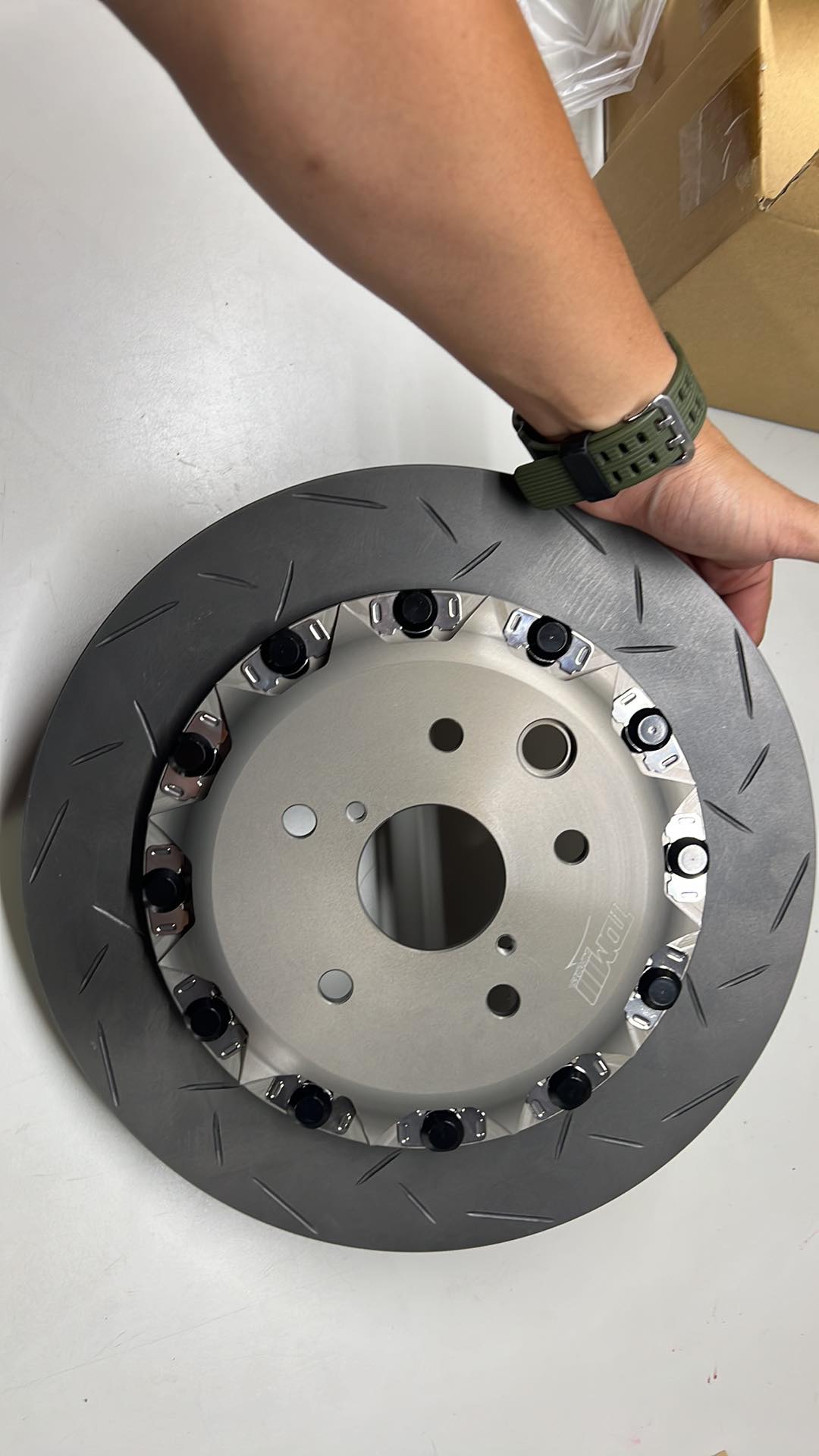

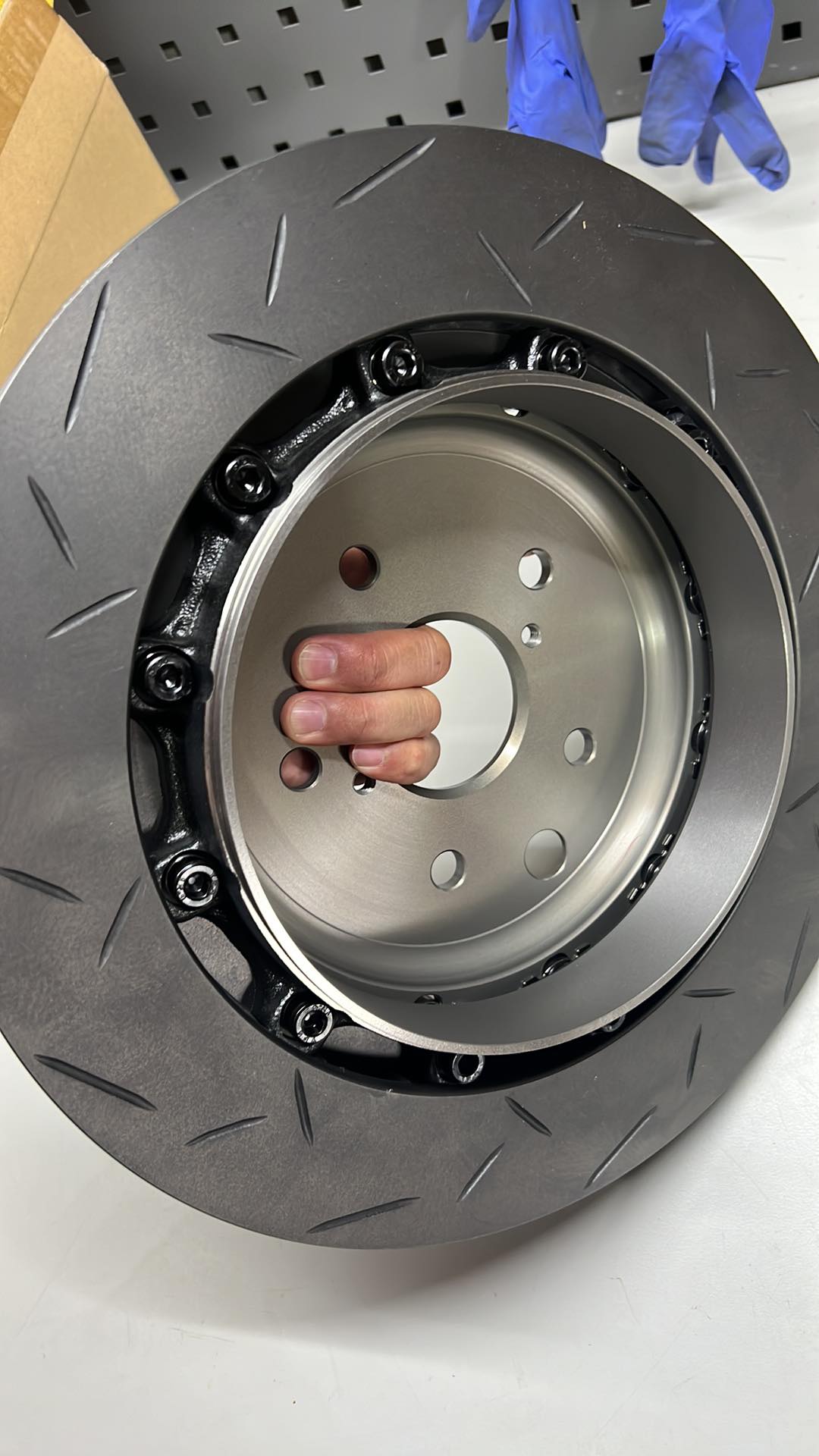

Pair of 2-piece floating rotors, size 330x28 mm

Pair of stainless steel brake lines

Four street brake pads with built-in shims (two pairs) – all kits include “Street Pads” as standard

Two stainless steel brake line banjo bolts

Four copper brake line washers

Four brake pad pins and four brake pad insert pins

Two brake pad stopping shims

Additional Information

Rear Weight: 22 lbs per wheel

Note: VB 17" Base Wheels require a minimum 5mm spacer for clearance

Installation Instructions : (Click Here)

Upgrade your braking system with TDMimports EL Series kit for reliable, high-performance stopping power with customizable style.
