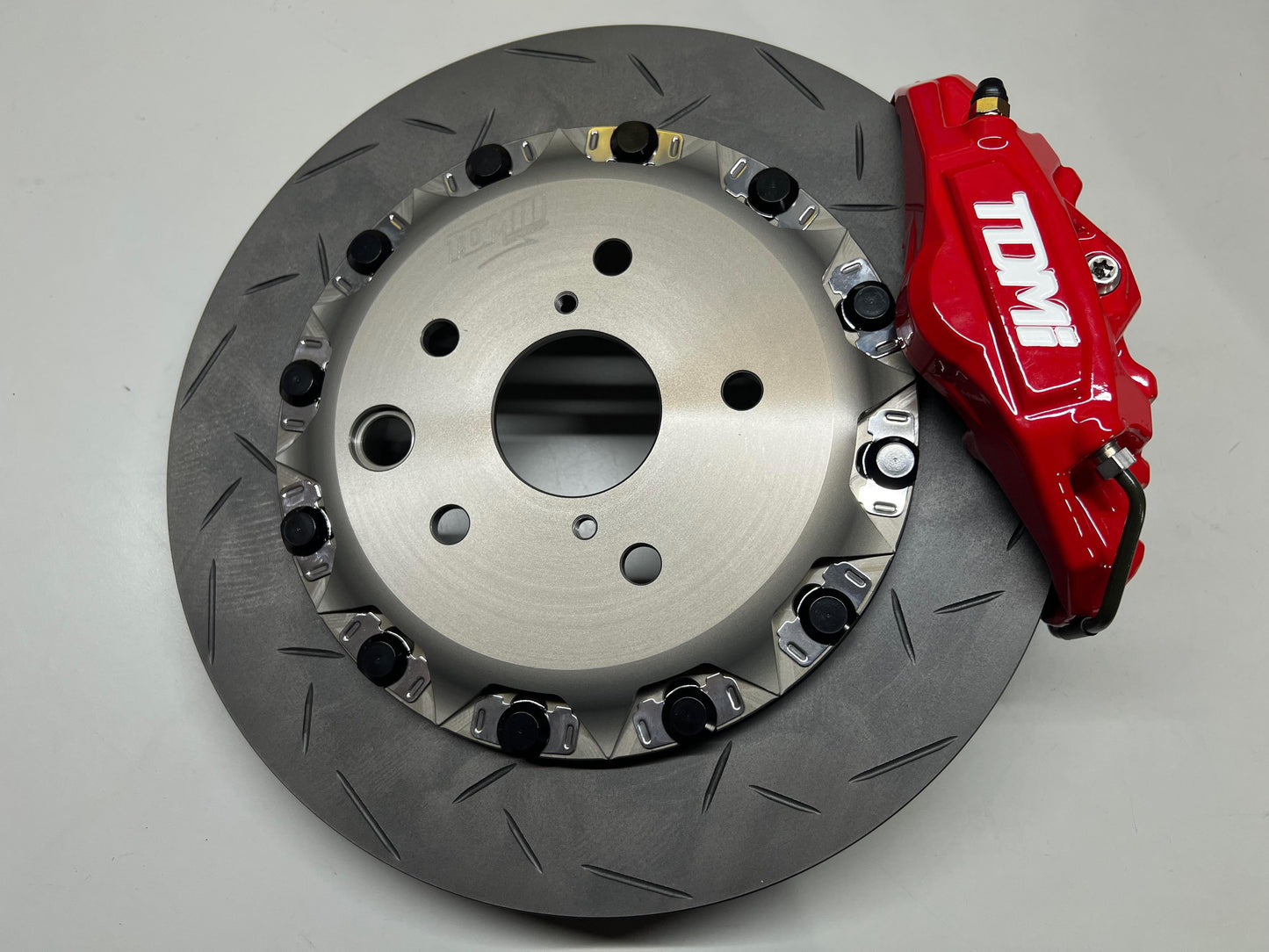

TDMI "EL" Series - REAR - Big Brake Kit (240SX S14)

TDMimports "EL" Series 2 Piston Big Brake kits are designed for high performance street and track usage. All TDMimports big brake kits are designed to directly bolt on to stock spindles using our modular bracket system for quality fitment.

In order to have a reliable brake system, TDMimports calipers are built using a very high standard in material choice. TDMimports Cast Monoblock calipers are made of cast aluminum to reduce unsprung weight and to increase rigidity and strength using our monoblock design.

To meet above average standards when producing reliable brake discs, TDMimports selected better quality FC-25 steel mixture with high cast carbon. This process increases our maximum capable temperature to 900 Celsius.  This provides a higher level of stress and temperature to be achieved without excessive material expansion or distortion. In current markets, most rotors are made of a lower grade steel, for instance FC-20 and FC-22 have a heat expansion by as much as 1.2-1.5mm when reaching temperatures of 500 Celsius.  However, TDMimports’ rotors will only expand by around 0.45 cm in comparison. For the Alloy Hat, TDMimports selected 7075-T6, forged and hard anodized in a champagne color.

TDMimports Big Brake kit includes:

​All kits receive “Street Pads” as a standard option.

​

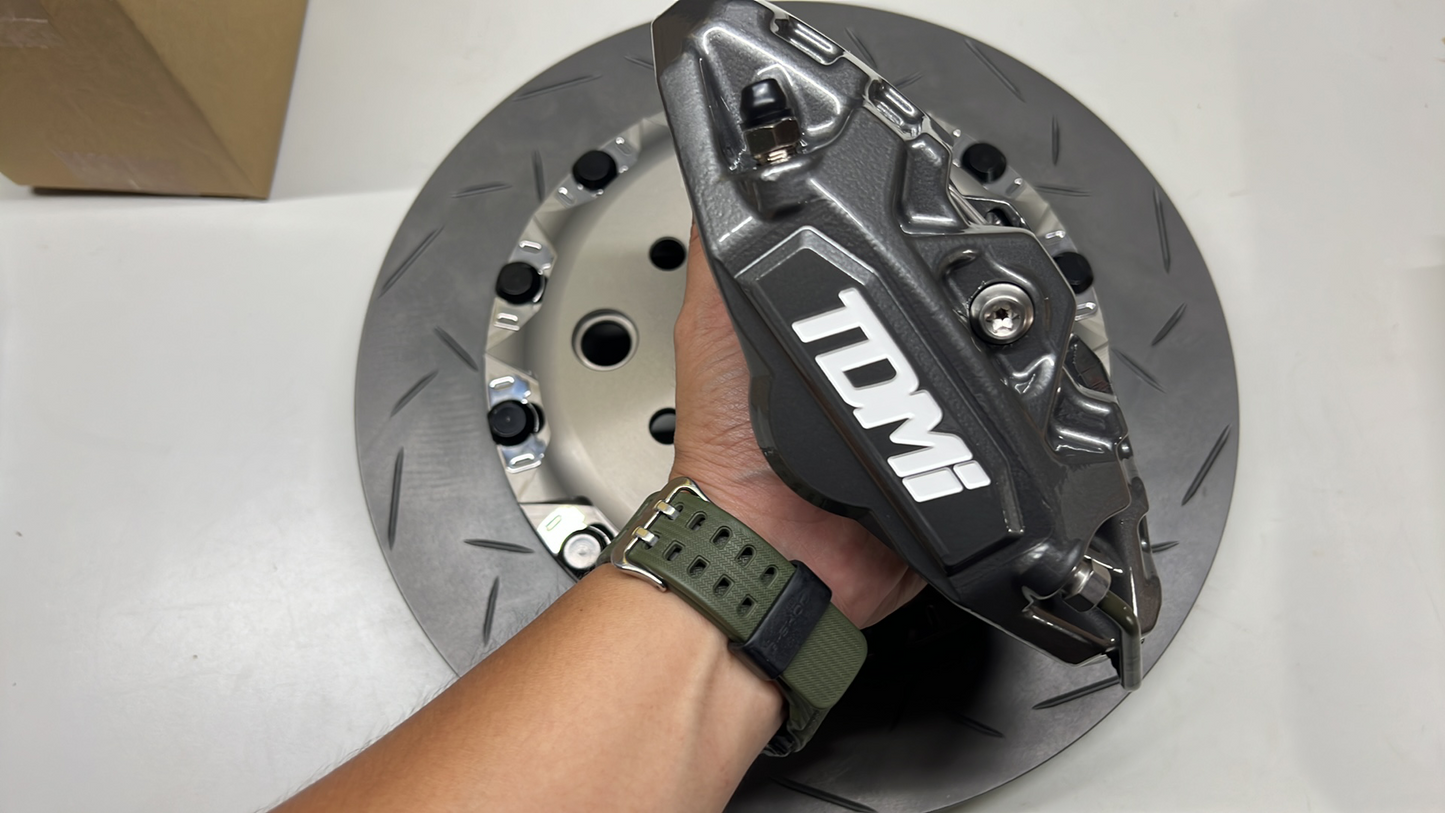

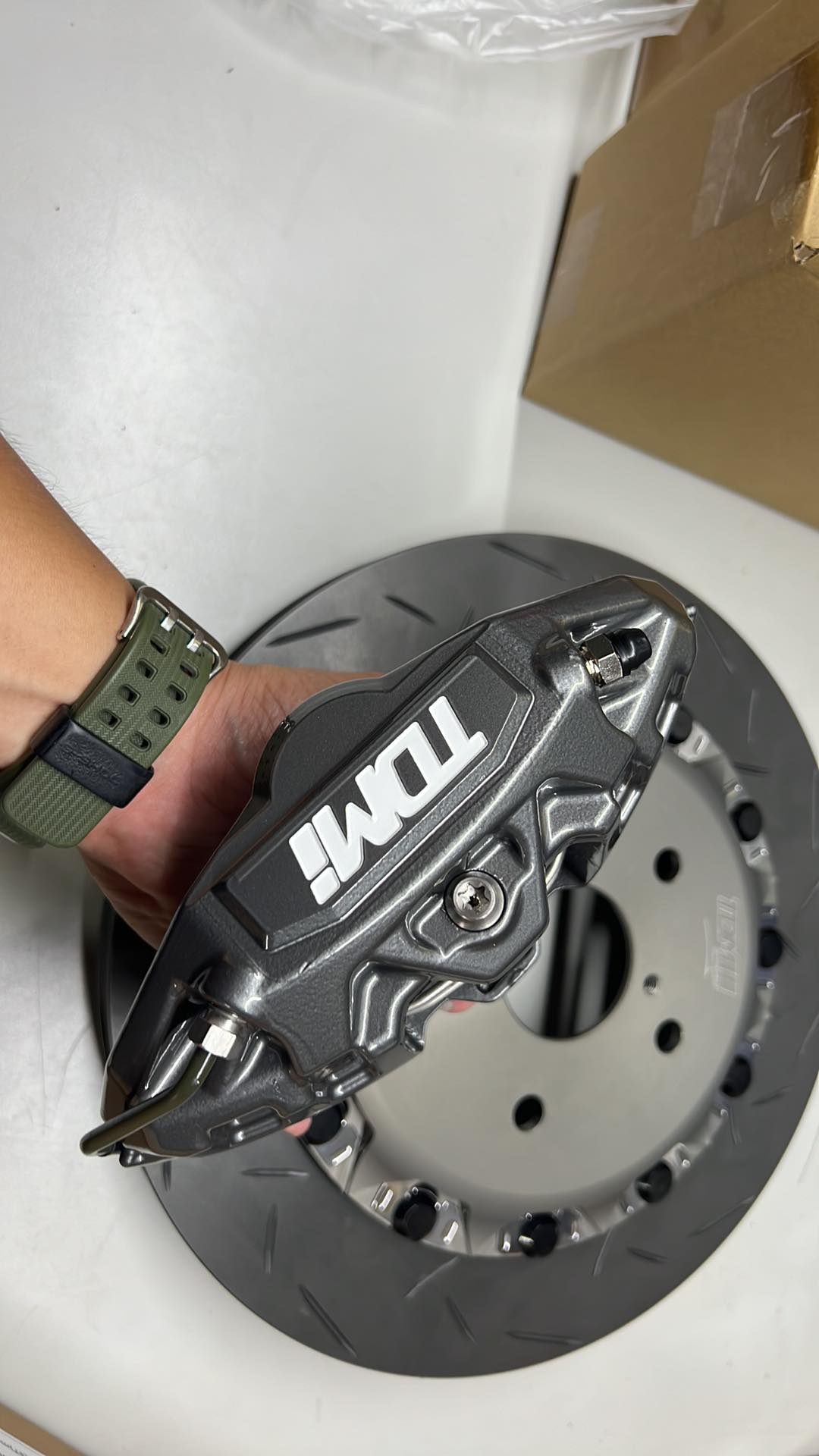

• A pair of cast monoblock caliper bodies, 2 piston

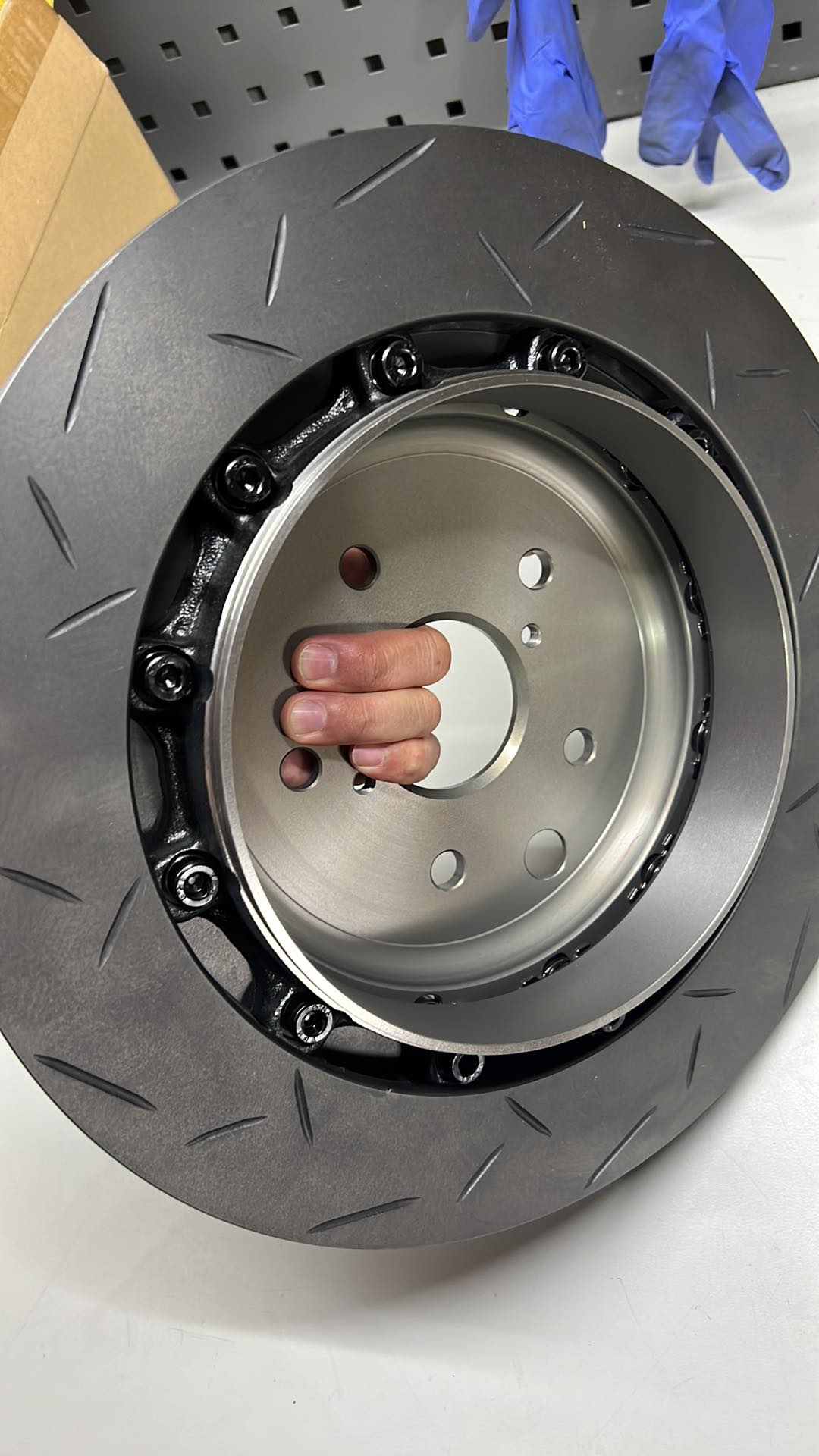

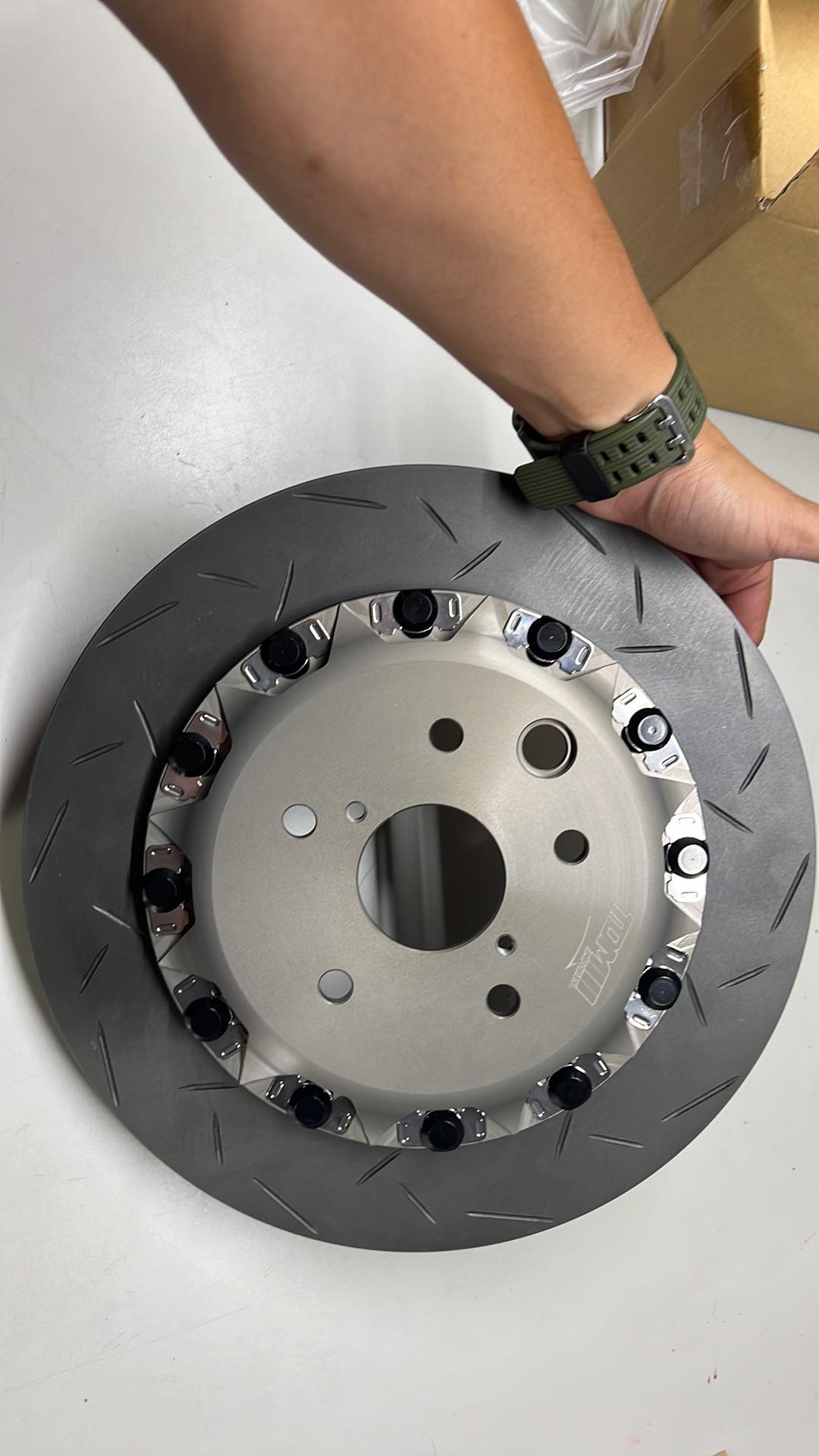

• A pair of 2-piece floating rotors 330x28

• A pair of stainless brake lines

• Two pairs (4 pads total) of our street brake pads with built in shims

• 2 stainless brake line banjo bolts

• 4 copper brake line washers

• 4 brake pad pins

• 4 brake pad insert pins

• 2 brake pad stopping shims

All kits are backed by a 2 year warranty from all manufacturer defects.

Lifetime warranty of piston rubber seals.
